High precision digital radius gauge

The High precision digital radius gauge allows the user to have a direct and immediate reading of inner and outer radius in a range from 55 to 11.250 millimeters or from 2" to 443" inches.

The High precision digital radius gauge measures radii in spherical objects such as tubes, profiles and pipes in a quick and accurate way.

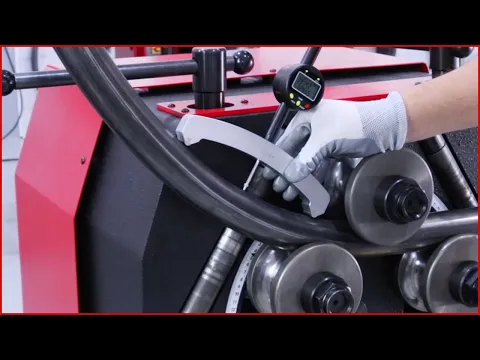

It is really fast and easy to use! It indicates the inner or outer radius of the part we are bending without removing it from the machine and without needing to previously draw and cut a guide template.

Technical features

This Digital arc meter allows the direct and immediate reading of the values of the inner or outer radius in a wide range of bends.
  • Comfort: No need to prepare and cut a template to know the radius of a bend, it is not necessary to remove the part from the machine to measure it either. The digital radius gauge makes the job quicker and easier.
  • Easy to use: Its use is simple and the measurement process is very fast. We only have to place the digital radius gauge on the internal or external part of the curve and it will automatically show the value.
  • Multi-material: This tool is suitable for any kind of solid and consistent materials like steel, wood or plastic shapes.
  • High precision: Its error tolerance over the radius is 0,01mm. Precision will depend on the surface quality of the material to measure.
  • Application scope: This digital radius gauge is supplied with three different high precision arc meters. The use of either one or other arch meter offers a measurement range swinging from 55 to 11.250 millimeters and from 2" to 443" inches.
  • LCD digital screen: Comfortable reading of all data and low power consumption.
  • Practical: It is small and light, we can easily use it for different measurements. It is comfortable, reliable and long lasting.
  • Storage: We deliver it inside a stainless briefcase, with an inner foam protection to keep it safe and protect the arc meter when it is not in use. It is comfortable to carry and shock-resistant.
  • Two units of measure: We can select either millimeters or inches just by pressing a button.
  • Perfect for wide radii: Unlike other manufacturers, the High Precision Arc Meter Nargesa can measure radii up to 12m with maximum precision. For bigger radii, please consult the manufacturer.
  • Ideal for smaller radii: The great touch sensor length allows its use even when the inner radius to measure is very tiny.
TECHNICAL SPECIFICATIONS
  • Measurement scope: From 55 to 11.250 millimeters or from 2" to 443" Inches.
  • Error tolerance over the touch sensor: ΔL = 0.02mm
  • Error tolerance over the radius: ΔR = (0.01*R)mm
  • Power supply: 3V CR2032 Lithium battery (included)
  • Working temperature: 0±40ºC
  • Storage and transport temperature: -20ºC – 60ºC
  • Relative humidity: =80%

Samples of jobs done with High precision digital radius gauge

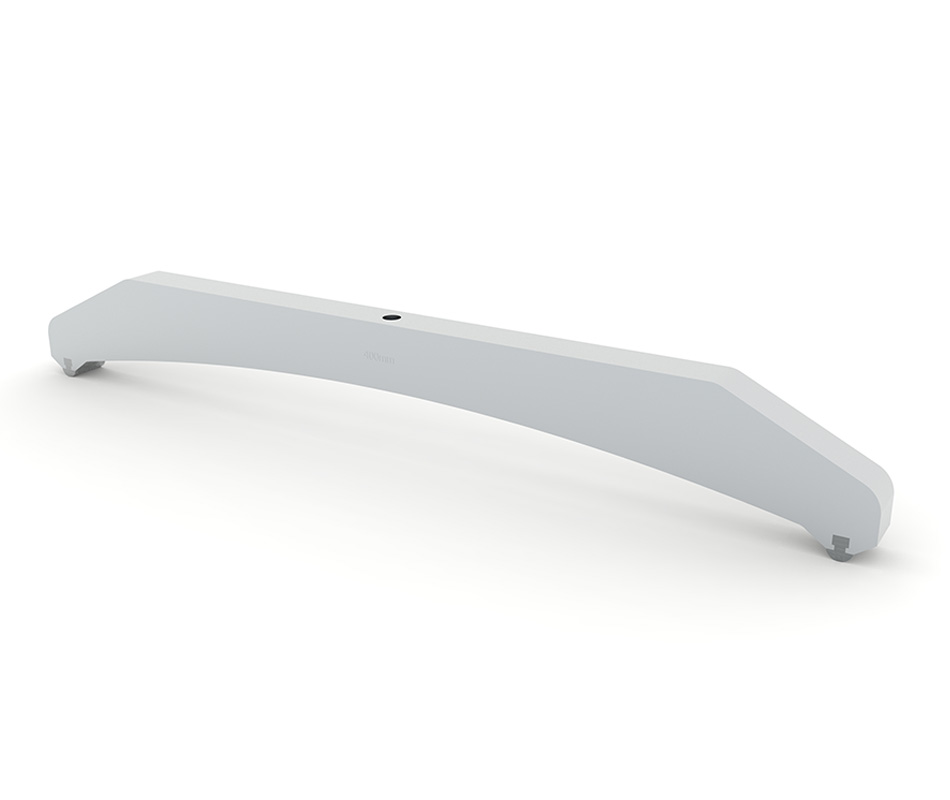

100mm Measurement arc - High precision digital radius gauge

The 100mm High precision arc meter is supplied along with the High precision digital radius indicator.

This tool is attached to the arc meter to measure internal or external radii, amongst the following ranges:

Minimum radius: 55mm or 2"

Maximum radius: 625mm or 25"

200mm Measurement arc - High precision digital radius gauge

The 200mm High precision arc meter is supplied along with the High precision digital radius indicator.

This tool is attached to the arc meter to measure internal or external radii, amongst the following ranges:

Minimum radius: 125mm o 5"

Maximum radius: 2.500mm o 99"

300mm Measurement arc - High precision digital radius gauge

The 300mm High precision arc meter is supplied along with the High precision digital radius indicator.

This tool is attached to the arc meter to measure internal or external radii, amongst the following ranges:

Minimum radius: 475mm o 18"

Maximum radius: 11.250mm o 443"

To obtain an optimum result in the different bending operations, it is essential to count on accurate and reliable measurements tools.
The Digital arc meter is the best complement for the Nargesa Section and tubes bending machines. This tool enables to check the bending radius on the bent profiles in a quick and accurate way, without the need to take off the tube from the machine.

Dimensions of the machine High precision digital radius gauge Nargesa

High precision digital radius gauge: 250x60x40 mm.
Weight of the tool​: 0,190 Kg.

100 high precision Arc meter: 125x57x20 mm.
100 arc meter weight​: 0,246 Kg.

200 high precision Arc meter: 225x54x20 mm.
200 arc meter weight​: 0,332 Kg.

300 high precision Arc meter: 325x59x20 mm.
300 arc meter weight​: 0,527 Kg.

Tariff Item Code​:  90173010

Characteristics of the packaging High precision digital radius gauge Nargesa

Nº Pallets​: 1.

Width:​ 390 mm.

Length:​ 280 mm.

Height:​ 100 mm.

Volume: 0,11 m3

Nett weight:​ 1,30 Kg.

Gross Weight:​ 2,75 Kg.

Tariff Item Code:​  90173010

Other features:

  • The High precision digital radius gauge and the three Arcs are supplied inside a stainless Steel briefcase is shock-resistant with an inner foam protection.
  • Includes 3V CR2032 lithium battery

Uses of the machine: High precision digital radius gauge

The High precision digital radius gauge  is used to measure radius of circular objects or shapes, such as tubes, profiles and pipes.
