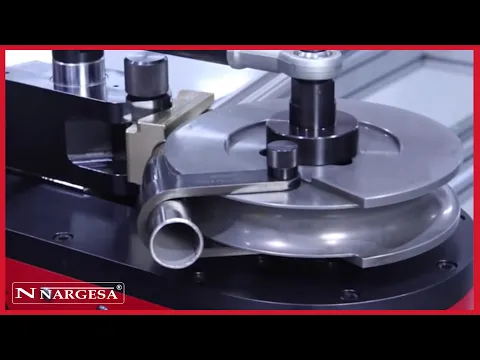

Non-mandrel tube and pipe bender CC60 CNC

NEW generation of CC60 Non-mandrel tube and pipe benderMaximum working stroke: 60.3 mm or 2” Schedule-40 or 2” ISO x 4 mm.

The new generation of CC60 Non-mandrel tube and pipe bender can bend up to 180º curves on hollow profiles ensuring the best bent finishes in today’s market. Equipped with a Touch Screen control grant the user interactaction with the standard features offered using the latest 4.0 technology. The sleek look, versatility and faster bending speeds also allows us to have one of best machines offered in our industry. Materials can be round, oval, square, rectangular and made of different metals such as steel, aluminum, stainless steel, copper...

All Nargesa’s Products are according to CE regulations for the manufacturing of industrial machinery.

Technical features

The mandrel-less tube and pipe bending machines Nargesa are perfect for making curves with a constant quality for pipes, tubes, square bars, rods and other profiles.

  • Maximum size on S275 round steel pipe: 60.3 mm or 2” Schedule-40 or 2” ISO x 4 mm.
  • Maximum size on aluminum pipe: 60.3 mm x 8 mm / 2.375” x .315”
  • Maximum size on stainless steel pipe 304 / 316: 60.3 mm x 3 mm / 2.375” x .160”
  • Maximum size on square tube: 40 x 40 x 4 mm / 1.50” x 1.50” x .160”
  • Maximum angle of curvature: 180º
  • Minimum radius of curvature: 3 times the pipe diameter.
  • Maximum radius of curvature: 320 mm
  • Automatic rotation speed from 0.7 up 4.5 rpm
  • Repetition on the curve of +/- 0.1 degrees
  • Reinforcement tool post support arm for pipes with diameters over 40 mm included.
  • 400 ml BEND 8 lubricant included.
  • Two bending directions, right or left for easier bending.
  • Quick die change over: Maximum 60 seconds.
  • 4.0 Technology
  • CNC control with 7” touchscreen with more than 20 different languages
  • Safety pedal to the right and left.
  • Side shelving to store tools.
  • All bend dies are made of tempered steel for longer tool life.
  • The counter dies are made of bronze alloys to help prevent markings on the outside of the bent profiles.
  • Stores up to 10,000 programs.
  • Up to 50 different angles on the same piece can be programmed.
  • Dimensions can be programmed in inches or millimeters.
  • Pivot system with automatic unlocking to help remove material.
  • Automatic and programmable spring back correction.
  • Automatic unlocking
  • Automatic and programmable springback
  • Offset head for complex parts.
  • Reinforcement tool post support included
  • Packaging included
  • Motor power: 1.1 KW / 1.5 HP.
  • Electrical voltage: 230V single phase 50/60Hz
  • Optional voltage: 110V single phase 50/60Hz
  • Intensity: 4.5 A
  • Machine weight: 360 Kg / 794 Ibs
  • A lower pallet bench to transport the machine to the worksite or storage.
  • The CC60 pipe bender is sent completely assembled.
  • An wooden pallet and 3-layer cardboard box suitable for seafreight.
  • Optional: NIMF15 wooden container.

All our products are manufactured in our facilities in Spain. Hydraulic and electrical components are all standard from the best leading European trademarks with technical support all over the world: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato...

Samples of jobs done with Non-mandrel tube and pipe bender CC60 CNC

What you should know before purchasing a pipe Bender

4.0 Technology: Whenever a customer agrees, the manufacturer may remotely connect to their machine to do any software updates completely free of cost and detect any anomalies in the machine without needing to travel to the machine site.

Robustness and speed: The weight of the machine in comparison to other brands provides an idea of how it’s built. Some models can double the others in weight. These are not DIY machines; they’re pipe benders that can work 24 hours a day.

Curve thicknesses and finishes: The original counter-shape designed by Nargesa guarantee a good finish even with a thin-walled pipe.

Offset head and two-directional bending: The offset head design allows for complex curves as the pipe goes below it.

Enhanced energy efficiency: The consumption per machine working stroke has been significantly reduced to save energy.

Automatic unlock: The bending carriage moves automatically to the right or to the left depending on the direction of the curve to more easily release the piece without needing to re-adjust the grip.

Reinforcement strap included: The CNC pipe bender comes standard with a reinforcement arm. It’s used to prevent machine chassis deformations.

Bend 8 Lubricant included: With the purchase of the CC60 CNC pipe bender, you’ll receive a 400 ml bottle of special bending lubricant.

Nargesa BEND8 aerosol lubricant - Non-mandrel tube and pipe bender CC60 CNC

The CC60 pipe bender comes with a 400 ml bottle of BEND8 lubricant.

Formats available for this product:
REF. 060-SPR-00003 400 ml bottle.
REF. 060-SPR-00004 Box of 12 400 ml bottles.  108€

This is a high-additive and low-viscosity aerosol oil. Contains PTFE. Does not contain silicone.

  • Enables the finish on the outer bend
  • Inhibits roughness and inner marks
  • Reduces wear of the tooling
  • Especially designed for tubes of small thickness
  • Lubricates to reduce friction
  • Avoids and disolves corrosion
  • Gives shine and protects
  • Cleans up and removes dirt
CC60 2-axis positioning gauge - Non-mandrel tube and pipe bender CC60 CNC

The gauge of the CC60 allows to make mass produced parts, much faster, more accurate and repetitively.

  • Adjustable longitudinal positioning with 6 positions
  • Angular head rotation every 5 degrees
  • Four-clamp plate adjustable to round and square tube
  • Longitudinal movement with high precision linear guides
  • Automatic anti-collision control
  • Easy handling and preparation for difficult parts

REF: 140-17-01-50000
Gauge length: 3000mm
Maximum capacity: 60,3mm, 2” Schedule
Weight: 125Kg

Set Diameter 15mm Radius 60mm - Non-mandrel tube and pipe bender CC60 CNC

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-10001
External diameter​: 15 mm
Radius: 4D=60 mm
Min. thickness1 mm
Max. thickness: 5 mm
Weight​: 3,176 Kg

Check with the manufacturer for other dimensions​

Set Diameter 20mm Radius 60mm - Non-mandrel tube and pipe bender CC60 CNC

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-10002
External diameter: 20 mm
Radius: 3D=60 mm
Min. thickness: 1 mm
Max. thickness: 5 mm
Weight: 3,216 Kg

Check with the manufacturer for other dimensions​

Set Diameter 25mm Radius 75mm - Non-mandrel tube and pipe bender CC60 CNC

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-10003
External diameter: 25 mm
Radius: 3D=75 mm
Min. thickness: 1,2 mm
Max. thickness: 5 mm
Weight​: 5,545 Kg

Check with the manufacturer for other dimensions​

Set Diameter 30mm Radius 90mm - Non-mandrel tube and pipe bender CC60 CNC

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-10004
External diameter: 30 mm
Radius: 3D=90 mm
Min. thickness: 1,2 mm
Max. thickness: 5 mm
Weight​: 8,292 Kg

Check with the manufacturer for other dimensions​

Set Diameter 35mm Radius 105mm - Non-mandrel tube and pipe bender CC60 CNC

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-10005
External diameter: 35 mm
Radius: 3D=105 mm
Min. thickness: 1,5 mm
Max. thickness: 5 mm
Weight​: 12,140 Kg

Check with the manufacturer for other dimensions​

Set Diameter 40mm Radius 120mm - Non-mandrel tube and pipe bender CC60 CNC

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-10006
External diameter: 40 mm
Radius: 3D=120 mm
Min. thickness: 1,5 mm
Max. thickness: 5 mm
Weight: 17,112 Kg

Check with the manufacturer for other dimensions​

Set Diameter 50mm Radius 150mm - Non-mandrel tube and pipe bender CC60 CNC

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.
Support holder made of highly resistant steel which has been thermally treated with carbonitriding for 50-54 HRC hardness; this roller reduces the surface of contact with the counter-shape and, therefore, reduces friction.

REF: 140-17-01-10007
External diameter​: 50 mm
Radius: 3D=150 mm
Min. thickness: 2 mm
Max. thickness: 5 mm
Weight​: 31,407 Kg

Check with the manufacturer for other dimensions​

Set Diameter 60mm Radius 180mm - Non-mandrel tube and pipe bender CC60 CNC

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-10008
External diameter: 60 mm
Radius: 3D=180 mm
Min. thickness: 2 mm
Max. thickness: 2,5 mm
Weight: 40,88 Kg

Check with the manufacturer for other dimensions​

Set Diameter 60mm Radius 180mm with support holder  - Non-mandrel tube and pipe bender CC60 CNC

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Clamp with a fastener to firmly secure the material during the bending process.
Two Support holders made of highly resistant steel which has been thermally treated with carbonitriding for 50-54 HRC hardness; these rollers reduce the surface of contact, therefore, reduces friction.

REF: 140-17-01-10009
External diameter: 60 mm
Radius: 3D=180 mm
Min. thickness: 3 mm
Max. thickness: 4 mm
Weight: 40,58 Kg

Supporting Roller Kit REF: 140-17-01-00002 is required

Check with the manufacturer for other dimensions

Set Diameter 17,10mm Radius 68,4mm Diameter 3/8

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-20001
External diameter: 3/8"
External diameter: 17,10 mm
Radius: 60 mm
SCH10: 1,65 mm
SCH40: 2,31 mm
SCH80: 3,20 mm
Weight: 4,22 Kg

Check with the manufacturer for other dimensions​

Set Diameter 21,30mm Radius 63,9mm Diameter 1/2

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-20002
External diameter: 1/2"
External diameter: 21,30 mm
Radius: 3D=63,9 mm
SCH10: 2,11 mm
SCH40: 2,77 mm
SCH80: 3,73 mm
SCH160: 4,78 mm
Weight​: 3,567 Kg

Check with the manufacturer for other dimensions​

Set Diameter 26,70mm Radius 80,1mm Diameter 3/4

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-20003
External diameter: 3/4"
External diameter: 26,70 mm
Radius: 3D=80,1 mm
SCH10: 2,11 mm
SCH40: 2,87 mm
SCH80: 3,91 mm
SCH160: 5,56 mm
Weight: 6,738 Kg

Check with the manufacturer for other dimensions​

Set Diameter 33,40mm Radius 100,2mm Diameter 1

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-20004
External diameter: 1"
External diameter: 33,4 mm
Radius: 3D=100,2 mm
SCH10: 2,77 mm
SCH40: 3,38 mm
SCH80: 4,55 mm
SCH160: 6,35 mm
Weight​: 11,176 Kg

Check with the manufacturer for other dimensions​

Set Diameter 42,20mm Radius 126,6mm Diameter 1

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-20005
External diameter​: 1” 1/4
External diameter​: 42,20 mm
Radius: 3D=126,6 mm
SCH10: 2,77 mm
SCH40: 3,56 mm
SCH80: 4,85 mm
SCH160: 6,35 mm
Weight​: 18,860 Kg

Check with the manufacturer for other dimensions​

Set Diameter 48,30mm Radius 144,9mm Diameter 1

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-20006
External diameter: 1” 1/2
External diameter: 48,30 mm
Radius: 3D=144,9 mm
SCH10: 2,77 mm
SCH40: 3,68 mm
SCH80: 5,08 mm
Weight: 27,0478 Kg

Check with the manufacturer for other dimensions​

Set Diameter 60,30mm Radius 180,9mm Diameter 2

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Clamp with a fastener to firmly secure the material during the bending process.
Two Support holders made of highly resistant steel which has been thermally treated with carbonitriding for 50-54 HRC hardness; these rollers reduce the surface of contact, therefore, reduces friction.

REF: 140-17-01-20007
External diameter: 2"
External diameter: 60,30 mm
Radius: 3D=180,9 mm
SCH10: 2,77 mm
SCH40: 3,91 mm
Weight​: 45,755 Kg

Supporting Roller Kit REF: 140-17-01-00002 is required

Check with the manufacturer for other dimensions​

Set Diameter 15,88mm Radius 63,52mm Diameter 5/8

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-30001
External diameter​: 5/8"
External diameter​: 15,88 mm
Radius: 60 mm
Min. thickness: 1 mm
Max. thickness: 4 mm
Weight: 3,601 Kg

Check with the manufacturer for other dimensions​

Set Diameter 19,05mm Radius 57,15mm Diameter 3/4

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-30002
External diameter: 3/4"
External diameter: 19,05 mm
Radius: 60 mm
Min. thickness: 1 mm
Max. thickness: 4 mm
Weight​: 2,794 Kg

Check with the manufacturer for other dimensions​

Set Diameter 25,40mm Radius 76,20mm Diameter 1

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-30003
External diameter: 1"
External diameter: 25,4 mm
Radius: 3D=76,2 mm
Min. thickness: 1,2 mm
Max. thickness: 5 mm
Weight​: 5,723 Kg

Check with the manufacturer for other dimensions​

Set Diameter 31,75mm Radius 95,25mm Diameter 1

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-30004
External diameter​: 1” 1/4
External diameter​: 31,75 mm
Radius: 3D=95,25 mm
Min. thickness: 1,5 mm
Max. thickness: 6 mm
Weight​: 10,213 Kg

Check with the manufacturer for other dimensions​

Set Diameter 38,10mm Radius 114,30mm Diameter 1

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-30005
External diameter​: 1” 1/2
External diameter​: 38,10 mm
Radius: 3D=114,3 mm
Min. thickness: 1,5 mm
Max. thickness: 7 mm
Weight​: 15,698 Kg

Check with the manufacturer for other dimensions​

Set Diameter 50,8mm Radius 152,4mm Diameter 2

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-30006
External diameter: 2"
External diameter: 50,80 mm
Radius: 3D=152,4 mm
Min. thickness: 2 mm
Max. thickness: 5 mm
Weight​: 32,241 Kg

Check with the manufacturer for other dimensions​

Set Diameter 57,15mm Radius 171,45mm Diameter 2

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Counter-shape designed by the Nargesa R+D department which reduces friction and ensures optimal curving. It’s made of a highly resistant aluminum bronze alloy and mechanized in 3D.
Clamp with a fastener to firmly secure the material during the bending process.

REF: 140-17-01-30007
External diameter: 2" 1/4
External diameter: 57,15 mm
Radius: 3D=171,45 mm
Min. thickness: 2 mm
Max. thickness: 2,5 mm
Weight: 36,13 Kg

Check with the manufacturer for other dimensions​

Set Diameter 57,15mm Radius 171,45mm Diameter 2

The following is supplied with the unit:
Main Roller made of highly resistant steel which has been thermally hardened with carbonitriding for 50-54 HRC hardness; this roller guide perfectly adapts to the pipe for excellent results.
Clamp with a fastener to firmly secure the material during the bending process.
Two Support holders made of highly resistant steel which has been thermally treated with carbonitriding for 50-54 HRC hardness; these rollers reduce the surface of contact, therefore, reduces friction.

REF: 140-17-01-30008
External diameter: 2" 1/4
External diameter: 57,15 mm
Radius: 3D=171,45 mm
Min. thickness: 3 mm
Max. thickness: 4 mm
Weight: 35,91 Kg

Supporting Roller Kit REF: 140-17-01-00002 is required

Check with the manufacturer for other dimensions

Supporting Roller Kit CC60 - Non-mandrel tube and pipe bender CC60 CNC

REF: 140-17-01-00002

The CC60 Supporting Roller Kit is used to bend pipes with a diameter equal to or more than 60 mm, 2” 1/4 or 2” Schedule x 3 mm. This unit is comprised of:

A roller holder: The roller holder is made up of three highly resistant steel pieces that are precision mechanized and treated on the surface. They’re fixed and centered with rectified bolts to ensure proper operation.

The coupling axis: The coupling axis is made up of a chrome Ø20 mm Matera axis

Weight: 9.856 kg

ESA S625 CONTROL PANEL

Nargesa tube and pipes benders are controlled with a very intuitive and easy-to-use 7” color touchscreen with the latest 4.0 technology. Just enter the pipe dimensions, thickness, angle of the curve or curves and choose a die from the library and the control programs the rest of the parameters automatically; elastic recovery correction (springback), recommended rotation speed, whether a tool post support is necessary or not, and if the intended curve is possible... All of this may be modified by the end user based on their own needs. These are some of the most relevant features of this control system.

  • Stores up to 10,000 programs.
  • Up to 50 different angles on the same piece can be programmed.
  • Dimensions may be programmed in inches or millimeters.
  • A library of available dies with the possibility of programming new ones.
  • A library of differently shaped pipes with varying thicknesses.
  • The CNC can be supplied in more than 20 different languages.
  • Automatic or manual rotation speed adjustment from 0.7 to 4.5 rpm.
  • Manual or automatic operation.
  • Automatic elastic recovery correction (springback).
  • Piece counter.
  • Independent correction of the programmable final curve degree.
  • 4.0 Technology
  • On-screen alarm diagnostics.
  • Preventive maintenance warning.
  • Can be remotely connected by the manufacturer without having to travel to the machine site.
  • Warning on screen if the tool post support needs to be used.
  • 7” color touchscreen with 800 x 480 resolution
  • 128 MB silicon disk
  • 2 analog inputs, 12 bit resolution.
  • 16 digital inputs (24 Vdc).
  • 16 digital outputs (24 Vcc, 0.7 A max.) Protected against overloads and short circuits.
  • 1 RS232 serial port
  • 1 CAN port with 9 D-Sub F connector contacts.
  • 24 Vdc power source
  • 1 USB port





Dimensions of the machine Non-mandrel tube and pipe bender CC60 CNC Nargesa

Dimensions of the machine: 600x1000x1143 mm.

Weight: 360 Kg.

Tariff Item Code:  84622180

Other features:

  • A lower pallet bench to transport the machine to the worksite or storage.
  • The CC60 pipe bender is sent completely assembled.
Characteristics of the packaging Non-mandrel tube and pipe bender CC60 CNC Nargesa

Nº Pallets: 1.

Width: 730 mm.

Length: 1090 mm.

Height: 1340 mm.

Volume: 1,066m3

Nett weight: 360 Kg.

Gross Weight: 385 Kg.

Tariff Item Code:  84622180

Otras características:

  • Palletized bench to move the machine easily to the working site or storage.
  • The machine is delivered completely mounted.
  • Packaging with wooden pallet and 3-layered cardboard, suitable for sea freight.
  • Optional: Complete wooden packaging NIMF15.

Uses of the machine: Non-mandrel tube and pipe bender CC60 CNC

Fixed radius bending machines are used in most branches  related to the world of metallurgy. Naval: to build all types of ducts and pipes with different shapes. For the protections and rails of yachts in stainless steel. Construction: for all types of stairs, pool railings, parking protections, gas stations, pillars, boats... Automobile: bumpers, anti-roll bars, protections and windows of "buggies"... Motorcycle: motorcycle chassis, handlebars, motorbikes and bikes parking. Furniture: Manufacture of workout machines, chairs, tables and all kinds of furniture. Agriculture: Structures for animal feeders, machinery, greenhouses...

Shipment everywhere

We arrange shipment anywhere in the world.

3 years warranty

Register your machine in our website and get 3 year warranty.

Cases

The testimony of our customers is our best guarantee!

Contact with us

Contact us by Skype
Call us to +34 972568085
Whatsapp Call

Join to our Newsletter

Be part of our Nargesa Community and get all information of the branch, demo clips, campaigns in Machinery…
